Features



  1. Constructed of commercial-grade, quality components including forged brass handles and extruded brass plates
  2. Heavy-duty compression spring provides a smooth, positive return action of the lever and eliminates droop, extending the life of the product
  3. Symmetrically designed levers are able to be handed on site within seconds, with a simple 180° rotation of the lever in the preferred direction of use prior to installation
  4. Designed for use with Legge 995 narrow stile mortice locks, the 5300 Series can also be supplied to suit Legge 990MF mortice locks.



Specifications

Material

Forged brass

Door Type

Timber or Metal

Door Thickness

32mm to 50mm (51mm to 75mm with optional extended screws)

Spindle Size

7.6mm

Dimensions

Plate height 185mm;

Plate width 25mm;

Plate thickness 12mm





Downloads

Product Catalogue Legge 5400 Series

Filename
2202 Product Catalogue Legge 5400 Series.pdf
Size
1 MB
Format
application/pdf

Allegion Commercial Guide

Filename
2024 Allegion Commercial Guide.pdf
Size
4 MB
Format
application/pdf

No selected resources found. Try another category.

No selected resources found. Try another category.

Allegion Maintenance Guidelines

Filename
2024 AllegionAU Maintenance Guidelines.pdf
Size
265 KB
Format
application/pdf

Warranty Legge 5400 Series

Filename
1312 Warranty Legge 5400 Series.pdf
Size
83 KB
Format
application/pdf

Warranty Legge Special Finishes

Filename
1806 Warranty Legge Special Finishes.pdf
Size
161 KB
Format
application/pdf

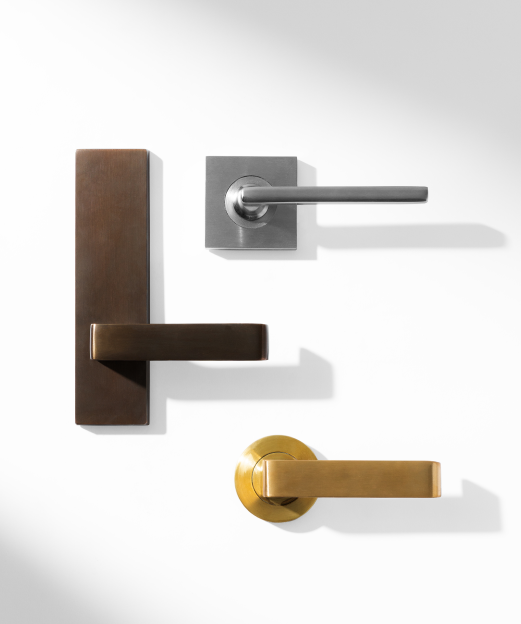

Security, durability and style
